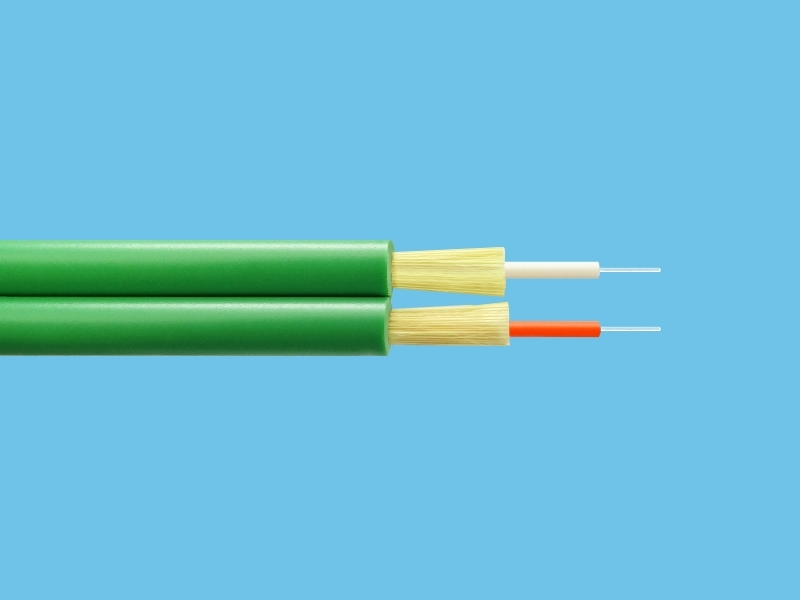

| Zipcord cable
Application
● It can be directly assembled with connectors as pigtail or patch cord.
● The link between the communication device and instrument.
● Multiple tight-buffered fibers can be bundled as distribution cable for indoor wiring.
Features
● All of sheath materials are RoHS compliance : PVC，LSZH ( Low Smoke Zero Halogen )，Hytrel，OFNP etc.Both OFNP and OFNR meet UL flame retardant specification.
● Smaller outer diameter and bend radius in a limited space environments to facilitate construction.
● Easy to strip the coating material.

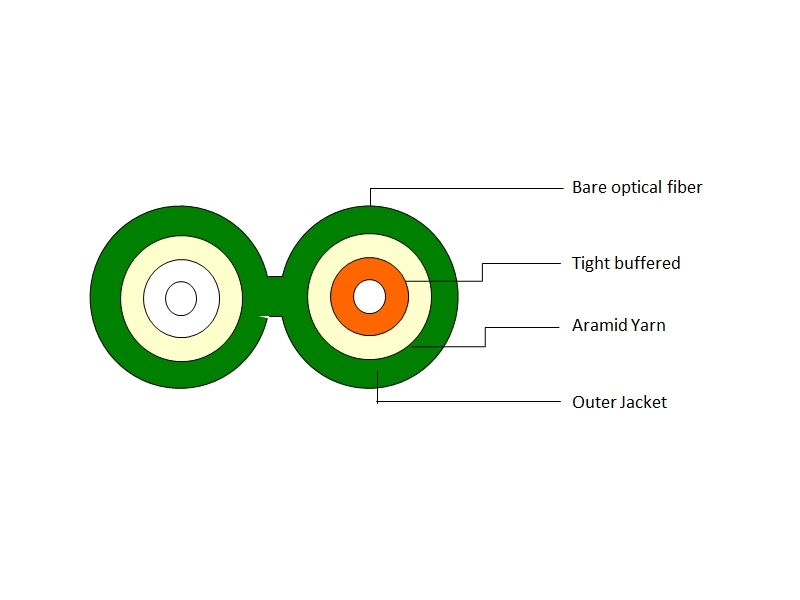

● The sheath of 8-shaped structure is easy to be peeled and to be used separately.
● Storage, installation, operationg temperature : -20℃ ~ +70 ℃
Specification
| Fiber Count | Outer Diameter ( mm ) | Weight ( g/m ) | Mini Bending Radius (mm) | Max. Tensile Strength (N) | ||
|---|---|---|---|---|---|---|
| Load | Unload | Short term | Long term | |||
| 2 | 1.6 | ≦10 | 45 | 30 | 500 | 300 |
| 2 | 1.8 | ≦13 | ||||
| 2 | 2.0 | ≦12 | ||||
| 2 | 2.4 | ≦15 | ||||
| 2 | 3.0 | ≦16 | ||||
