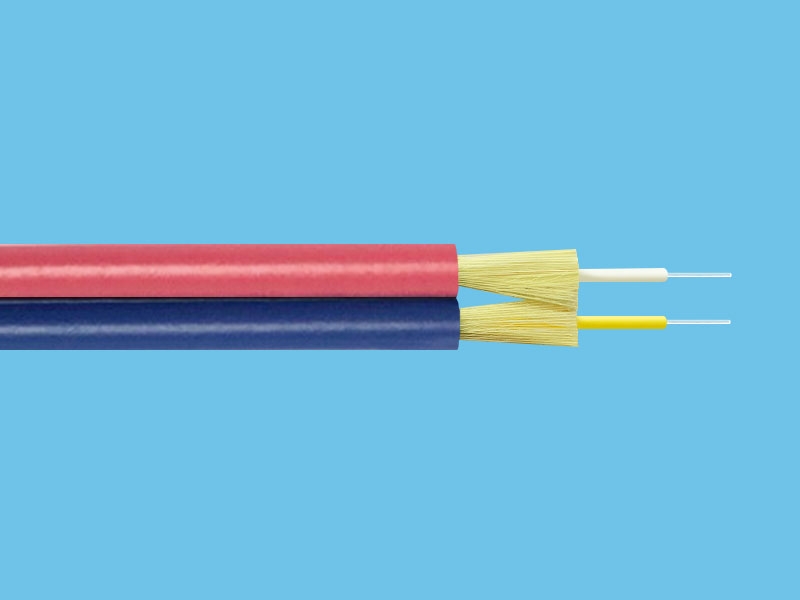

| Zipcord with Two colors cable
Application
- It can be directly assembled with connectors as pigtail or patch cord.
- The link between the communication device and instrument.
- Multiple tight-buffered fibers can be bundled as distribution cable for indoor wiring.
Features
- Present in two colors which is easier to distinquich druing installation.
- All of sheath materials are RoHS compliance : PVC (meet UL flame retardant specification.)
- Smaller outer diameter and bend radius in a limited space environments to facilitate construction.
- Easy to strip the coating material.

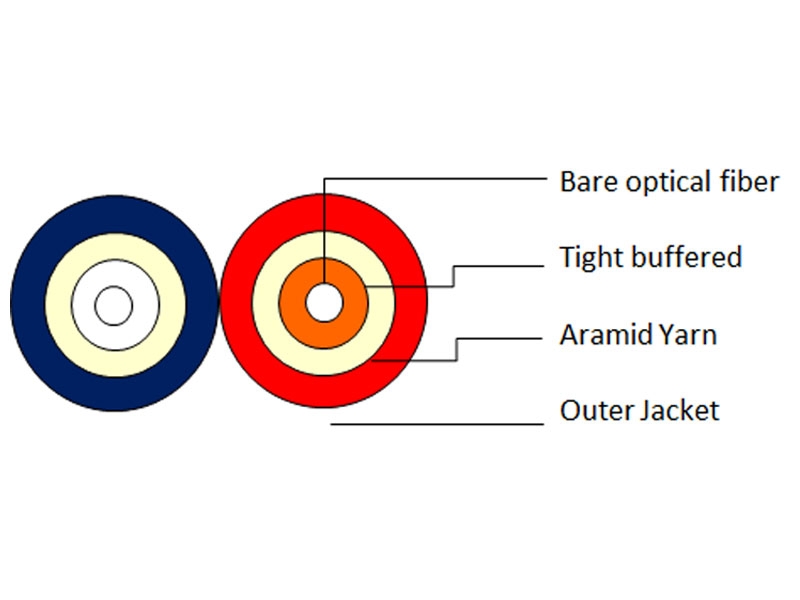

- The sheath of 8-shaped structure is easy to be peeled and to be used separately.
- Storage, installation, operationg temperature : -20℃ ~ +70 ℃
Specification
| Fiber Count | Outer Diameter(mm) | Weight(g/m) | Mini Bending Radius(mm) | Max. Tensile Strength(N) | ||
|---|---|---|---|---|---|---|
| Load | Unload | Short term | Long term | |||
| 2 | 2.0 | ≦12 | 45 | 30 | 500 | 300 |
*Can be Customized by Request.
